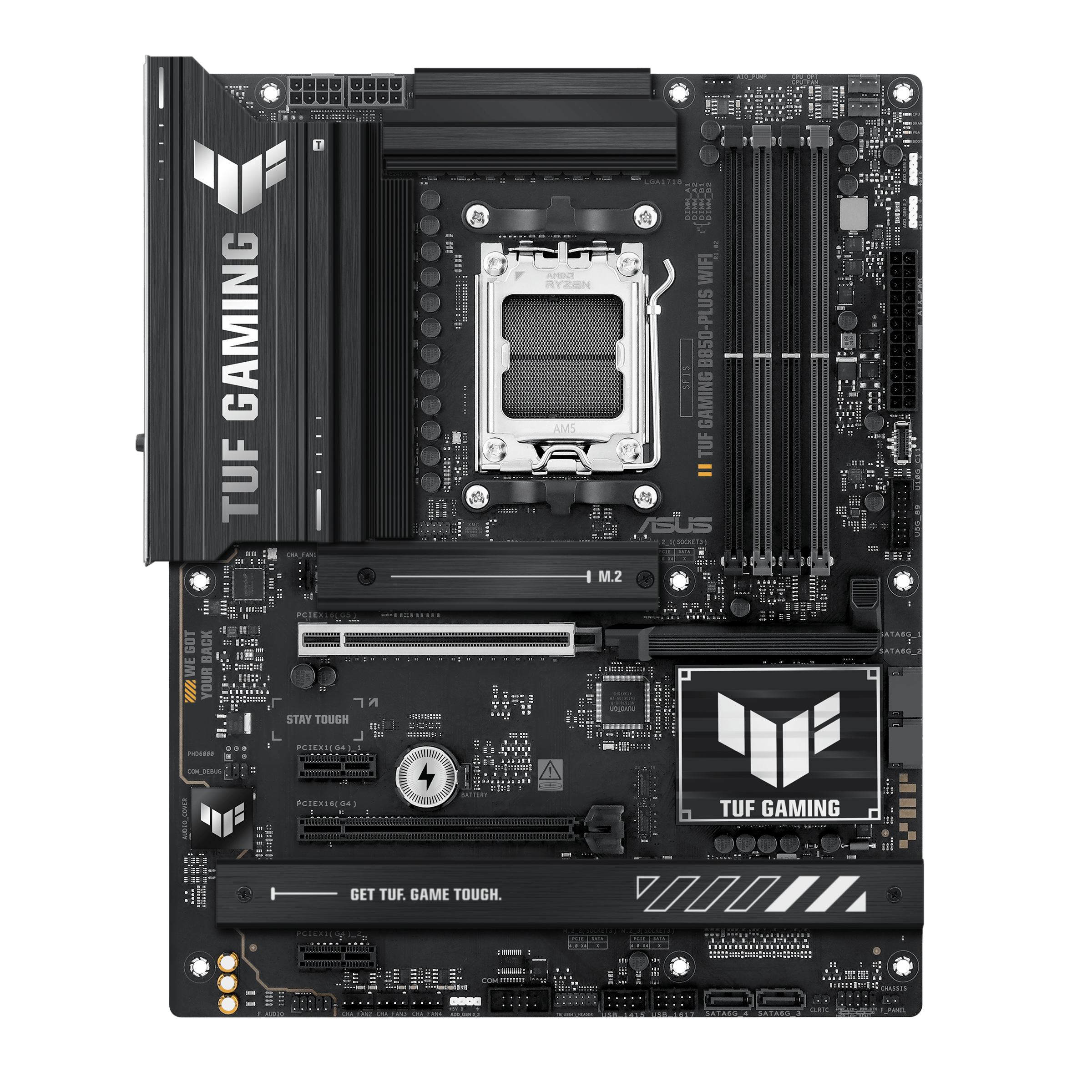

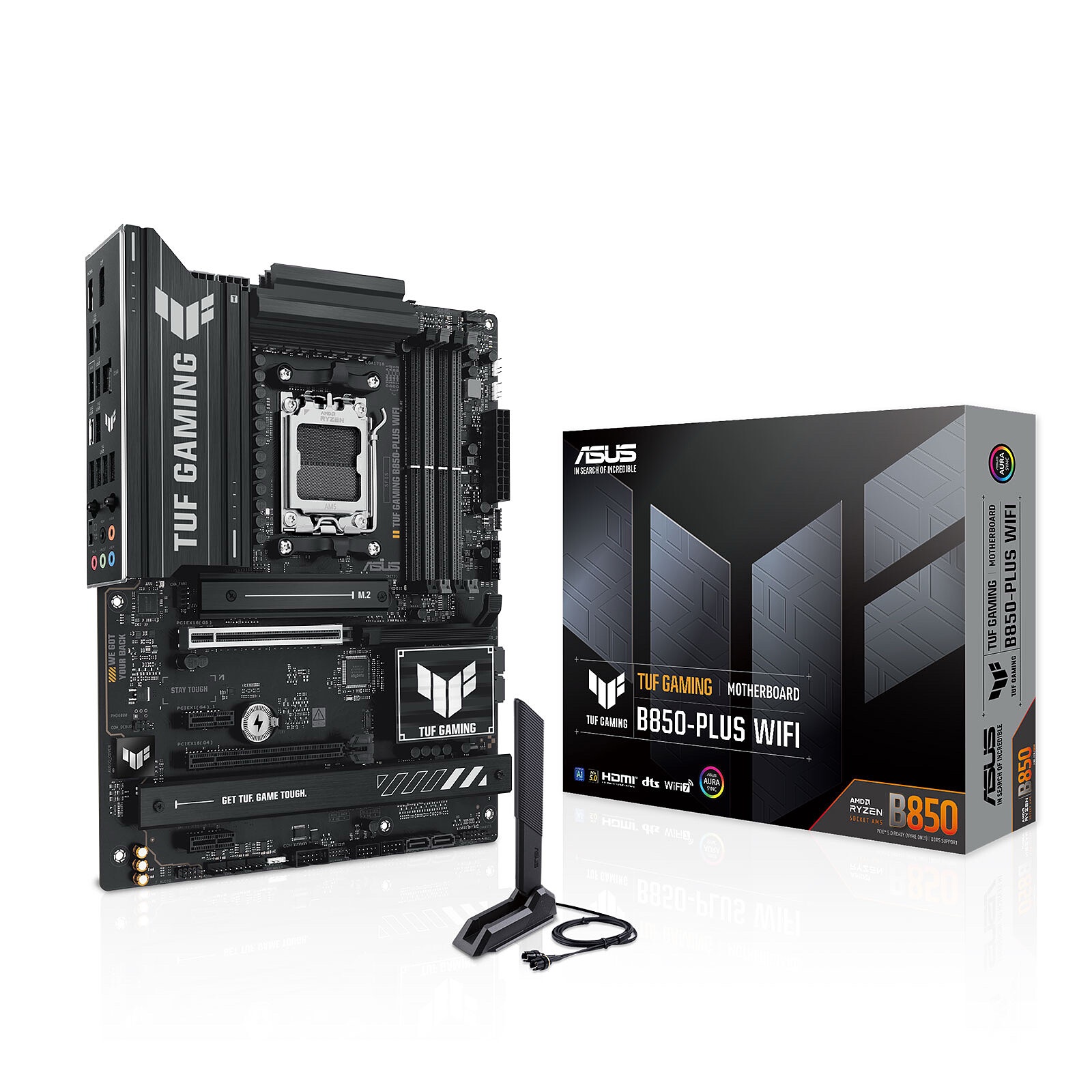

ASUS TUF Gaming B850-plus WIFI

Name: ASUS TUF Gaming B850-plus WIFI
Brand: Asus
SKU: 15069
Availability: InStock

1

AM5 Socket for AMD Ryzen™ Desktop Processors

2

Expansion Slots
» 1 x PCIe 5.0 x16 SafeSlot
» 1 x PCIe 4.0 x16 Slot (max @x4)
» 2 x PCIe 4.0 x1

3

14(80A)+2(80A)+1(80A) Power Stages

4

4 x DIMM
» DDR5
» Dual Channel
» AEMP

5

3 x M.2 Slots
» 1 x M.2 2280 PCIe 5.0 x4
» 1 x M.2 2242/2260/2280/22110
PCIe 4.0 x4
» 1 x M.2 2280 PCIe 4.0 x4

السعر الأصلي هو: 480.000 د.ع.السعر الحالي هو: 475.000 د.ع.

Add to compare

Add to wishlist

15 People watching this product now!

المتجر الاكثر موثوقية في العراق

يوجد توصيل لجميع محافضات العراق

ضمان لمدة سنة على جميع القطع

طرق الدفع الالكترونية:

وصف المنتج

AM5 Socket for AMD Ryzen™ Desktop Processors

Expansion Slots
» 1 x PCIe 5.0 x16 SafeSlot
» 1 x PCIe 4.0 x16 Slot (max @x4)
» 2 x PCIe 4.0 x1

14(80A)+2(80A)+1(80A) Power Stages

4 x DIMM
» DDR5
» Dual Channel
» AEMP

3 x M.2 Slots
» 1 x M.2 2280 PCIe 5.0 x4
» 1 x M.2 2242/2260/2280/22110
PCIe 4.0 x4
» 1 x M.2 2280 PCIe 4.0 x4

Intelligent

Intelligent Control

AI CACHE BOOST

Supercharge your large language model (LLM) workflows with AI Cache Boost. Exclusive to ASUS AMD 800 and 600 series motherboards that use Ryzen™ 9000 Series CPUs, this BIOS setting optimizes CPU cache and memory pathways to deliver up to 29% faster local LLM performance with high-speed memory tuning.

AI Advisor

ASUS AI Advisor is an ASUS technical expert that’s always available to answer your questions. Owners of compatible ASUS motherboards can interact with this AI-powered technology using natural language to learn more about their hardware. For DIY beginners, it can provide easy-to-understand explanations of one-click optimization features like AI Overclocking and fan speed tuning, and for seasoned PC-building veterans, it can offer guidance and instructions on the latest features offered by ASUS.

* Availability of ASUS AI Advisor may vary by region.
**AI Advisor functions may vary by platform.

UEFI BIOS

The UEFI interface delivers easy-to-use configuration options for PC beginners, and advanced features for veterans.

ASUS DriverHub

Simplify driver management with automatic detection, one-click installation and update for smooth, efficient system performance.

ASUS GlideX

Enable seamless screen sharing and control across PCs, tablets, and smartphones via USB or WiFi, supporting multiple platforms.

Power Saving

Leverage all-around energy efficiency settings to optimize power consumption.

Armoury Crate

Customize Aura Sync RGB and control ASUS devices. Includes product registration and updates.

Performance

Premium Power Design

Stable power is crucial for maximizing the performance of AMD processors. The motherboard is designed to meet the needs of high-core-count CPUs. It features 14(80A) + 2(80A) + 1(80A) power stages that integrate high-side and low-side MOSFETs and drivers into packages rated for up to 80A each. This configuration ensures optimal power delivery, efficiency, stability and performance for both current and future AMD processors.

14

Vcore Power

(80A, DrMOS)

2

SOC Power

(80A, DrMOS)

1

Misc Power

(80A, DrMOS)

Eight Layered PCB design

Enhanced stability and overclocking.

This multi-layered printed circuit board design quickly dissipates heat around the voltage regulators to improve overall system stability and provide the CPU with more overclocking headroom.

ProCool Power Connectors

Proprietary 8+8 pin connectors improve PSU connection.

Compared to traditional power inputs, ASUS ProCool connectors are built to tight specifications to ensure full contact with PSU power cables. The resulting lower impedance helps prevent hotspots and connector failure.

TUF Components

TUF chokes and capacitors offer rock-solid durability and stability.

TUF chokes deliver rock-solid power to the CPU, improving system stability. And TUF 5K black metallic capacitors provide 52% wider temperature tolerance and a 2.5X-longer lifespan than standard motherboard capacitors.

Digi+VRM Control

Real-time voltage control.

The integrated Digi+ voltage-regulator module (VRM) is one of the finest in the industry, optimized for ultra-smooth and ultra-clean power delivery to the CPU at all times.

Performance

Memory & Storage

DRAM Overclocking Performance

Comprehensive memory tuning options are the cornerstone of TUF GAMING motherboards. With the motherboard, you can extract all the potential out of your DDR5 modules*, whether they’re from an extreme-speed kit or an entry-level set that would otherwise be locked.

* Memory overclocking may vary between CPU series. Please refer to the spec table for detailed information.

DDR5 DOMINANCE

For those who want to fly past stock DDR5 speeds, this motherboard is primed and ready for enthusiast-grade kits, courtesy of vast AMD Extended Profiles for Overclocking (EXPO™) support. Seasoned veterans can further tweak performance via an extensive array of settings in the UEFI.

ASUS AEMP

ASUS Enhanced Memory Profile (AEMP) is an exclusive firmware feature for PMIC-restricted memory modules. AEMP automatically detects the memory chips on your kit and then presents optimized frequency, timing and voltage profiles that you can quickly apply.

M.2 PCIe 5.0 Support

This motherboard also features one PCIe 5.0 M.2 slot to enjoy the fastest data transfers of up to 128 Gbps*, and all M.2 slots support NVMe RAID configurations to take advantage of the latest available speeds.

Bandwidth (Gbps)

PCIe 5.0 x4

128

PCIe 4.0 x4

64

PCIe 3.0 x4

32

* Actual transmission speed will be lower than theoretical maximum speed.

Cooling

Cooler by Design

TUF Gaming motherboard front view with I/O ports

Enlarged VRM Heatsinks

Smart Fan Protect

Enlarged M.2 Heatsinks

4-Pin PWM/DC Fan

Superb PCH Heatsink

Multi Temperature Source

AIO Pump Header

Cooling

Cooler Compatibility

ASUS AIO coolers offer robust performance, high overclocking potential, bold aesthetics and customizable functionality for new TUF Gaming motherboards, empowering you to build your dream gaming rig.

Learn more about compatible AIO Coolers

* Image for reference only.

Connectivity

Empowering Connection

This motherboard offers a versatile range of connectivity with PCIe 5.0, rear USB 20Gbps Type-C^® port, front USB 10Gbps Type-C^® connector and Thunderbolt™ (USB4^®) header support.

PCIe 5.0 for Graphics Card

PCIe 5.0 offers twice the data transfer speed of PCIe 4.0, making it robust enough to handle new data-heavy tasks. PCIe 5.0 also brings other benefits, such as electrical changes to improve signal integrity, backward-compatible CEM connectors for add-in cards and backward compatibility with previous versions of the PCIe bus.

Rear USB 20Gbps Type-C^®

Extensive USB support ensures connections to a wide array of external devices. This motherboard includes a USB 20Gbps Type-C^® port on the rear I/O panel that delivers transfer speeds of up to 20Gbps.

Front USB 10Gbps Type-C^®

This motherboard features a USB 10Gbps Type-C^® front panel connector for speedy data transfers of up to 10Gbps.

DIY

Easy PC DIY

PCIe Slot Q-Release

A physical lever unlocks the first PCIe slot’s security latch with one tap, greatly simplifying the process of detaching a PCIe card from the motherboard when it’s time to upgrade to a new GPU or other compatible device.

* Video for reference only.

DIY

Protection

SafeSlot & SafeDIMM

SafeSlot is a reinforced metal sheath integrated with a PCIe slot to keep a card firmly installed and to ensure the highest possible data speeds. The SafeDIMM sheath is integrated to protect memory modules, empowering you to insert them with speed, accuracy and confidence.

ESD Guards

ASUS added special TVS diodes to boost electrostatic discharge prevention by up to +/- 10 kV of air discharge and +/- 6 kV of contact discharge – well above the industry standard.

TUF LANGuard

TUF LANGuard is a military-grade innovation that integrates advanced signal-coupling technology and premium surface-mounted capacitors to improve throughput, helping to protect the motherboard from lightning strikes and static electricity.

Stainless Steel Back I/O Panel

TUF Gaming motherboards feature a corrosion-resistant stainless steel rear I/O panel with up to a 3X longer lifespan. These models pass a rigorous 72-hour salt fog test, surpassing the industry standard.

3 x

Longer Lifespan

72 hr

Salt Fog Testing

play/pause

DIY

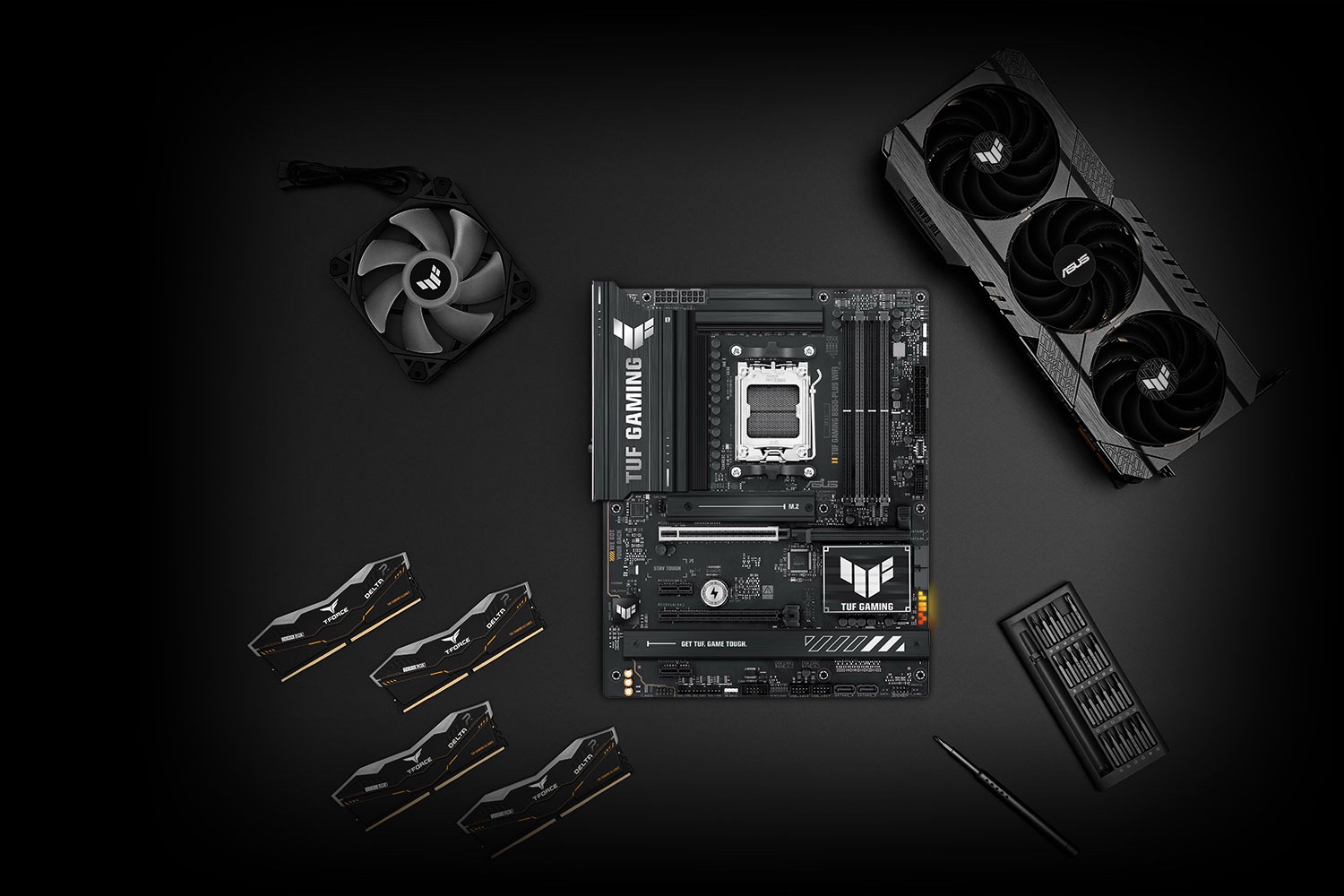

Build With Confidence

TUF GAMING Alliance is a collaboration between ASUS and trusted PC component brands to ensure compatibility across a wide range of parts, such as PC cases, power supplies, CPU coolers, memory kits and more. With new partnerships and components being added regularly, the TUF GAMING Alliance will continue to grow even stronger.
